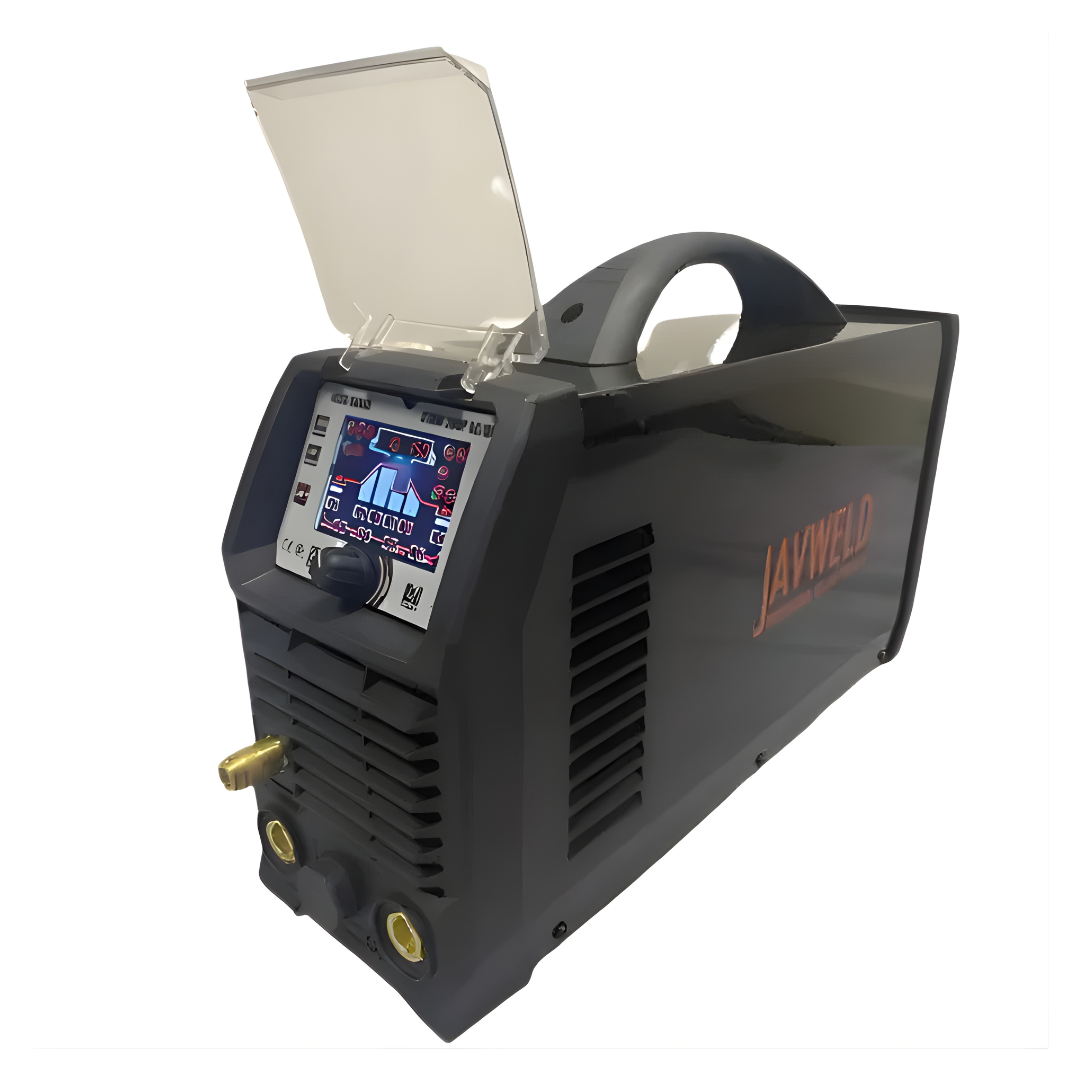

JAVWELD HE ECO Series TIG 200P AC/DC PFC W/C LCD Screen

JAVWELD HE ECO Series TIG 200P AC/DC PFC W/C LCD Screen

The JAVWELD HE ECO Series TIG 200P AC/DC is a high-efficiency inverter TIG and MMA welding machine engineered for precision, reliability, and ease of use. Designed for both light industrial and professional applications, it delivers superior performance on steel, stainless steel, aluminium, and thin sheet materials.

Featuring AC/DC output, Pulse TIG capability, and HF start ignition, this unit ensures clean, distortion-free welds — especially on thin aluminium and stainless steel. The bright LCD screen and PFC (Power Factor Correction) technology provide enhanced control, energy efficiency, and stability even on variable power sources.

Note: TIG torch sold separately.

Included Accessories

• Gas pipe

• Earth cable & clamp

Key Features

• AC/DC TIG Welding: Allows welding of both aluminium (AC) and ferrous metals (DC).

• LCD Display Interface: Easy-to-read color display for precise setting and monitoring of parameters.

• Pulse TIG Function: Delivers high performance on thin materials, minimizing heat distortion.

• HF & Lift TIG Start: Enables non-contact arc ignition for cleaner starts and reduced tungsten contamination.

• Multi-Process Capability: Supports TIG (HF/Lift) and MMA (Stick) welding modes.

• Power Factor Correction (PFC): Improves energy efficiency and ensures stable performance even on long extension cables or unstable mains.

• Smart Protection System: Equipped with temperature, voltage, and current sensors for overload and thermal protection.

• Up/Down Slope Control: Adjustable current ramping for clean arc starts and finishes.

• Pre/Post Flow Adjustment: Protects the tungsten electrode and improves shielding gas coverage.

• Compact, Lightweight Design: Easy to transport and store while delivering industrial-grade output.

Specifications

• Brand: Javweld

• Model: HE ECO Series TIG 200P AC/DC PFC W/C LCD Screen

• Input Voltage: 230 V, Single Phase

• Output Current Range: 10 – 200 A

• Duty Cycle: 60% @ 200 A

• Processes: AC/DC TIG (HF/Lift), MMA (Stick)

• Pulse Function: Adjustable pulse frequency and balance

• Display: Full-color LCD screen

• Start Type: HF & Lift TIG

• PFC (Power Factor Correction): Yes

• Cooling System: Fan-cooled with temperature sensors

• Torch Connection: 12-pin plug (torch sold separately)

• Weight: Approx. 9 kg

• Applications: Stainless steel, aluminium, copper, and thin sheet TIG welding; fabrication; light industrial work
