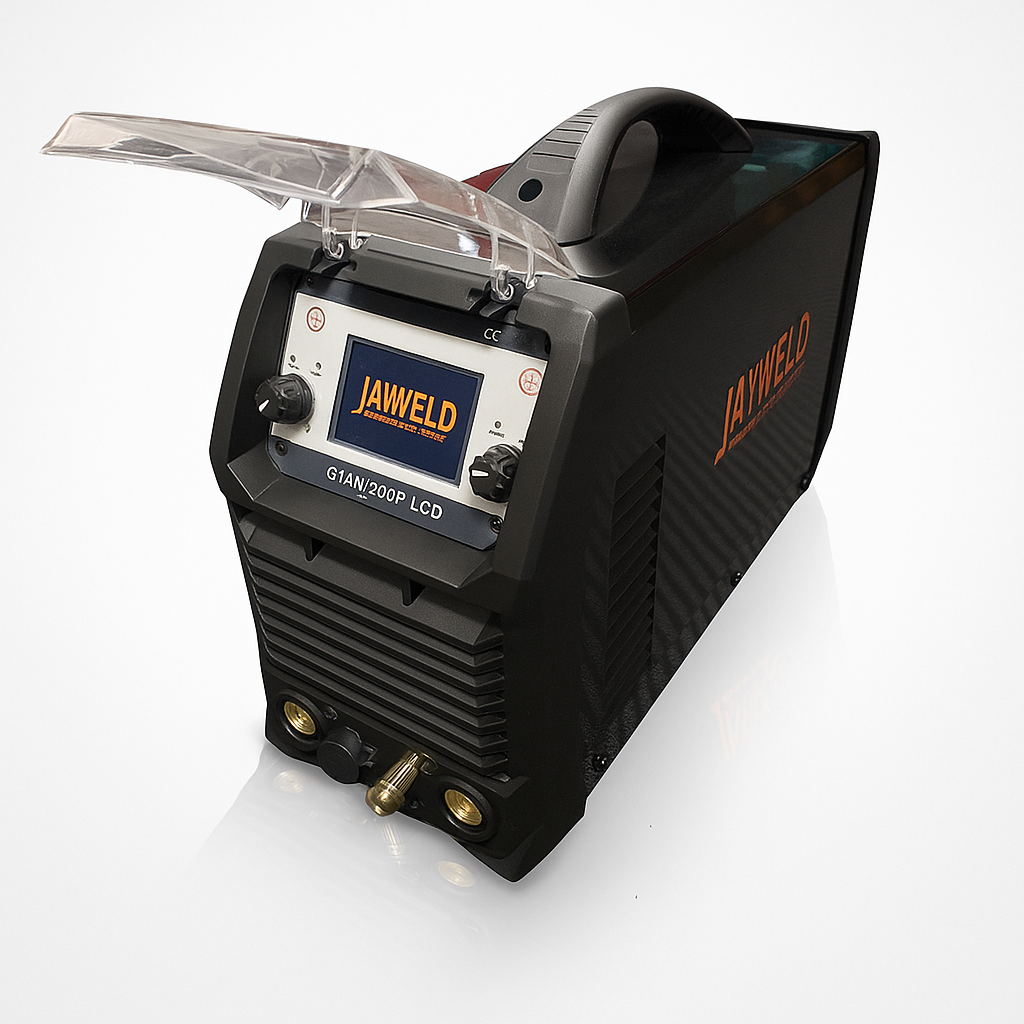

Javweld HE Series TIG 200P HF DC PFC LCD

Javweld HE Series TIG 200P HF DC PFC LCD

The Javweld HE Series TIG 200P is a high-performance DC TIG and MMA welder designed for professional fabrication, stainless steel work, and precision welding. With advanced HF start, PFC (Power Factor Correction), and a clear LCD control interface, it delivers exceptional arc stability, energy efficiency, and fine parameter control for consistent, high-quality welds.

Built for reliability, this compact yet powerful unit includes all the advanced features demanded by professionals — from programmable memory to fingertip amperage control compatibility.

Note: TIG Torch sold separately.

Included Accessories

• Gas pipe

• Earth cable & clamp

Key Features

• LCD Digital Display: Easy-to-read screen for precise control and visibility of parameters.

• HF (High Frequency) Start: Enables non-contact arc ignition for cleaner tungsten and better starts.

• 2T / 4T / Manual Pulse Function: Allows both manual and automatic control for a variety of welding styles.

• Job Save Function: Store and recall welding parameters for repeat work efficiency.

• Torch Fingertip Amperage Control Ready: Compatible with 12-pin torch amperage controllers (sold separately).

• Q-Start Function: Improves arc striking and stability at low currents.

• Dynamic ARC Control: Maintains consistent arc quality across variable thicknesses and metals.

• Multitack Function: Allows controlled spot or stitch welding for precision jobs.

• Power Factor Correction (PFC): Enhances efficiency and maintains stable output even under fluctuating input voltage.

• Compact & Portable: Lightweight, durable design suitable for workshop or on-site use.

Specifications

• Brand: Javweld

• Model: HE Series TIG 200P HF DC PFC LCD (Red Screen)

• Input Voltage: 230 V, Single Phase

• Output Current Range: 10–200 A

• Duty Cycle: 60% @ 200 A

• Welding Processes: TIG (DC HF Start) / MMA (Stick)

• Start Type: High Frequency (HF)

• Display: LCD Digital Red Screen

• PFC (Power Factor Correction): Yes

• Pulse Function: Adjustable pulse frequency and balance

• Amperage Control: Compatible with 12-pin torch-mounted fingertip controls

• Cooling System: Fan-cooled

• Weight: Approx. 8.5 kg

• Applications: Stainless steel, mild steel, copper, and thin sheet TIG welding
